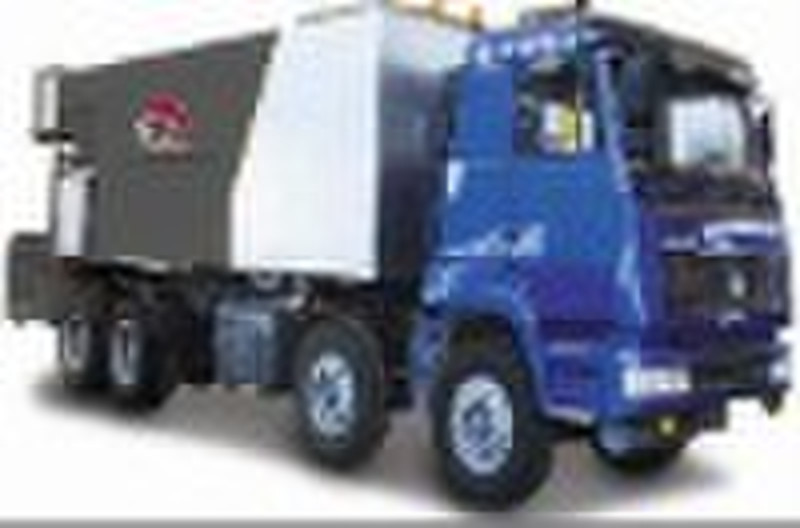

TDXF811-type Micro Surfacing Paver

TDXF811-type Micro Surfacing Paver1,Product IntroductionTDXF811-type slurry seal paver is mainly used for asphalt pavement maintenance and construction. Its main function is to repair large pits, increasing road waterproof features, improves abrasion resistance. It can meet the build of road lower seal coat and the construction of concrete bridge decks with waterproofing layer. It is independently developed by our company. It has the advantage of easy operation and excellent performance, is the ideal for road Micro-surfacing treatment.2,Main Performance Characteristics:1, The key structure used hydraulic-driven machine to realize automatic control.2 Stuffing Box Capacity is large (12 cubic meters), stone transporter inside.3, High output engine, to ensure the system stability.4, PLC control, can be automatic control.5, Double spiral agitator, in-out material mouth may be swinging back and forth to ensure a smooth uniform material.6, Width and thickness can be adjusted to meet the different construction requirements7, Using low-speed chassis, equipped with special transmission gear to meet the construction requirements, in order to make the performance more stable.8, Good corrosion resistance, can extend the service life3, Main technical Specifications:ModelTDX811Hopper capacity12m3Asphalt Tank Capacity4m3Water Tank Capacity4m3Auxiliary Tank Capacity600LStuffing Box Capacity1m3Auxiliary Power110Kw/2200rpmThe output2-3.5T/minPaving WidthAble to adjustOverall Dimensions11520×2500×3420mm
